The most compact 150 Amp stick welder on the market weighing only 75 LBS. Utilizing

quick connect/disconnect Dinse cable connectors allowing for ease of set up in any location

as well as simplified storage or transportation.

 Driven by a Honda engine, this results in many-years of reliable, efficient worry free welding

and power generation. .





Adjustment Range                                                                                                      30- 150A

Duty Cycle |                                                                                                             150A - 60%

Maximum Electrode Diameter                                                                         3.25 MM / 1/8 IN

Fuel Tank Size                                                                              3.11 L (3 hours welding time)

Single Phase Power                                                                Max om 2kW 110V / 8.7A 60HZ

Continuous Single Phase Power                                                     1.6KW / 110V / 6.9A 60HZ

Dimension                                                      = 420 x 360 x 480 MM / 16.5 x 14.25 x 18.75 IN

Weight                                                                                              34 Kgs / 75 Lbs



Call: 519 535 1312

Email: bill@provincialbuyandsell.com

• DC arc welding machine
• Welding with any type of electrode including cellulostic
• electrodes
• High-frequency voltage control and welding current
• High performance permanent magneto alternator
• Auxiliary 110V / 60Hz AC outlet for power hand tool use.
• Engine stop for low oil level
• Economizer function
• Power Optimizer

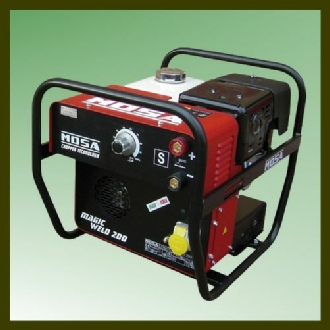

Has the power to do most jobs but at less than half of the weight of the competitors welders, weighing only 135 Ibs. Easily moved to any job-site location by 2 people or by one with the optional trolley attachment.

Driven by a Honda engine, this results in many years of reliable, efficient worry free welding

and power generation.

•  - DC arc welding machine
• - Welding with any type of electrode including  cellulostic

           electrodes

• - High-frequency voltage control and welding current
• - High performance permanent magneto alternator
• - Auxiliary 110V / 60 Hz AC outlet for power hand tool use
• - Full steel frame for protection
• - Engine stop for low oil level
• - Economizer function
• - Power Optimizer

Model - Honda GX 270 Displacement - 270 cm 3/16.48 Cu. In  H.P. - 8.5

Adjustment Range                                                                                                          20 - 200A

Duty Cycle                                                                                                                   200A - 60%

Maximum Electrode Diameter                                                                                  4.00 MM 5/32

Fuel Tank Size                                                                  5.3 L ( good for 3.5 hours welding time)

Single Phase Power Max                                                                 3.25KW / 110V / 14.1A 60HZ

Continuous Single Phase Power                                                         2.5KW /110V / 12.2A 60HZ

Dimension                                                           650 x 490 x 540 MM / 24.75 x 19.30 x 21.25 IN

Weight                                                                                                                  61 Kgs / 135 Lbs
